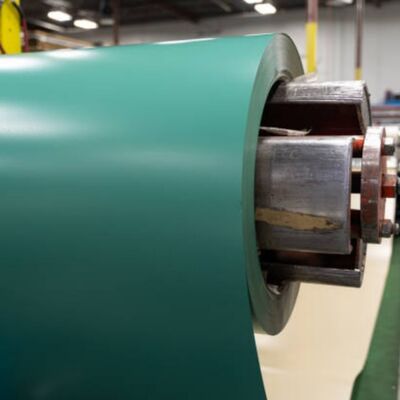

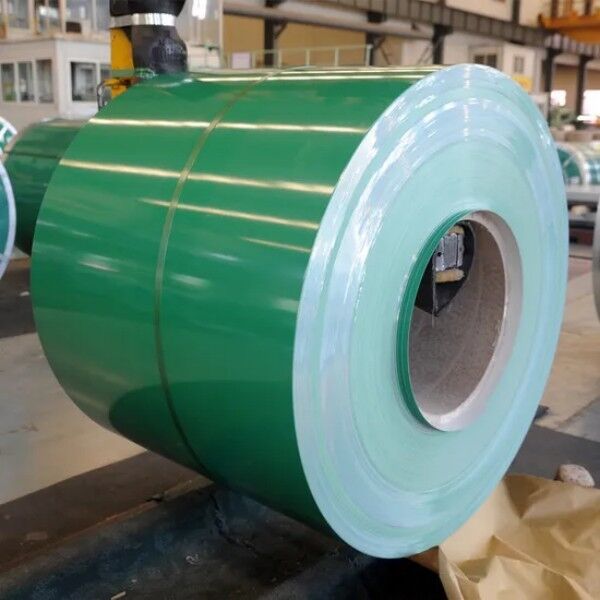

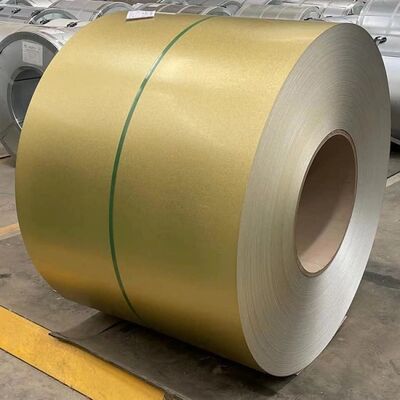

DX52D+AZ Prepainted Galvalume Steel Coil For Agricultural Structures
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | HUIYI-PPGL |
| Certificação: | SGS, BV, ISO9001 |
| Número do modelo: | CGLCC |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 25 toneladas a cada espessura |
|---|---|
| Preço: | negotiated |
| Detalhes da embalagem: | Pacote de exportação padrão. |
| Tempo de entrega: | 20-35 dias |
| Termos de pagamento: | L/C,T/T,D/P |
| Habilidade da fonte: | 50000 toneladas por ano |
|
Informação detalhada |
|||
| Material base: | Aço Galvalume | Revestimento de zinco: | 30-275G/M2 |
|---|---|---|---|
| Grossura: | 0,12-2,0mm | Diâmetro interno: | 508/610mm |
| Espessura da tinta: | TOP: 10-25μm ； Back: 5-8μm | Aplicação: | Indústria de publicidade, Indústria de construção, Indústria de eletrodomésticos |
| Padrão: | EN 10169, ASTM A755 | Prazo de pagamento: | T/T, L/C, D/P |
| Destacar: | DX52D+AZ prepainted galvalume steel coil,PPGL steel coil for agricultural structures,prepainted galvalume steel coil with warranty |
||
Descrição de produto
Prepainted Galvalume Steel (PPGL) is a high-performance building material consisting of an aluminum-zinc alloy coated substrate with a factory-applied paint finish. This combination delivers exceptional heat reflectivity, corrosion resistance, and long-term color retention. Widely used in modern roofing, wall cladding, and architectural projects, it provides an economical and durable solution with minimal maintenance requirements.
| Brand Name | Huiyi |
|---|---|
| Substrate | Galvalume (55% Al-43.4% Zn-1.6% Si) |
| Thickness range | 0.12mm - 2mm |
| Width range | 914mm - 1219mm |
| Paint | PE or PVDF or PU or SMP or HDP |
| Coil Weight | 3-8 Tons |
| Grade | DX51D+AZ, S220GD +AZ, S320GD +AZ |
| Processing Service | Roll forming, Cutting, Bending, Perforating, Welding |
- Architectural Building Systems - Widely used in roofing, wall panels and garage doors, providing durable protection against harsh weather conditions.
- Automotive Components - Commonly formed into body panels, chassis parts and exhaust systems, offering reliable corrosion resistance.
- Household Appliances - Extensively applied in refrigerators, washing machines and electrical cabinets, ensuring scratch-resistant surfaces.
- Agricultural Structures - Ideal for greenhouses, poultry houses and farm buildings, delivering long-term durability in rural environments.
To ensure optimal condition during transit, each coil receives multi-layer protection with VCI anti-rust paper, kraft paper, and PE film, plus PP edge guards and strapping. Exports use ISPM 15 certified wooden crates or pallets with clear labeling. Desiccant bags are available upon request for high-humidity regions.
