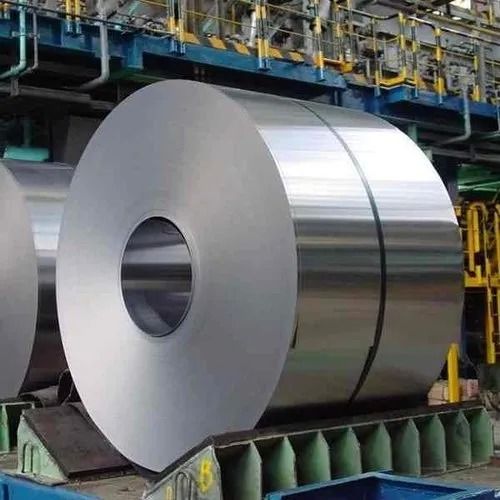

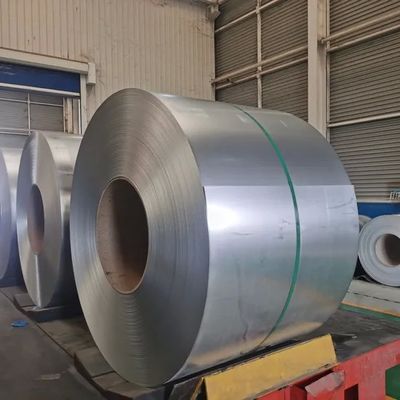

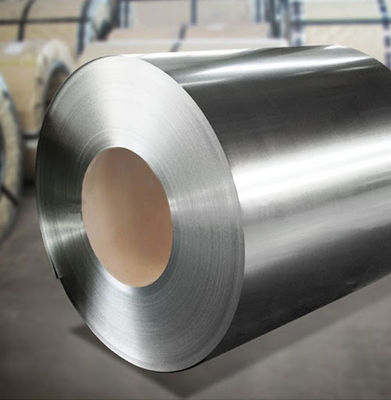

DX53D Formable Galvanized Steel Coil with 270-500 MPa Tensile Strength and 140-280 MPa Yield Strength for Automotive Applications
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | HuiYi-GI |
| Certificação: | ASTM, EN, JIS |
| Número do modelo: | Dx53d+z |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 25mt |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Papel Kraft VCI + Filme PE de 0,3 mm + Paletes com alça de aço com guardas de borda |
| Tempo de entrega: | 15-30 dias |
| Termos de pagamento: | T/t, l/c, d/p |
| Habilidade da fonte: | 5000MT/mês |
|
Informação detalhada |
|||
| Nome do produto: | Bobina de aço galvanizada | Material: | Bobina de aço de alta resistência |
|---|---|---|---|
| Tamanho: | (0,12-2,0) mm × (600-1250) mm | Resistência à tracção: | 270-500 MPA |
| Força de escoamento: | 140-280 MPA | Resistência a spray de sal: | 1.000HRs (ASTM B117) |
| Tipo de spangle: | Zero spangle (para pintura) | Propriedade especial: | Excelente desempenho profundo do desenho |
| Destacar: | 270-500 MPa Tensile Strength Galvanized Steel Coil,140-280 MPa Yield Strength Galvanized Steel Coil,1000hrs Salt Spray Resistance Galvanized Steel Coil |
||
Descrição de produto
DX53D Formable Galvanized Steel Coil For Automotive
Our DX53D Formable Galvanized Steel Coil is engineered for high-performance automotive applications, combining superior deep-drawing capabilities with exceptional corrosion resistance. The hot-dip galvanized coating (Zinc Coating: 60-275g/m²) provides robust sacrificial protection, ensuring longevity in harsh environments.
With a tensile strength of 270-380 MPa and elongation exceeding 30%, this coil is ideal for complex forming processes like deep drawing and stamping without cracking or coating peeling. Certified to ASTM A653, EN 10346, and JIS G3302 standards, it meets stringent automotive industry requirements for durability, weldability, and paint adhesion. The surface finish (zero spangle or minimized spangle) ensures a smooth base for painting and coating.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | DX53D+Z (ASTM A653, EN 10346, JIS G3302) |
| Thickness | 0.12mm - 2.0mm(±0.02mm) |
| Width | 600mm - 1,250mm |
| Coating Weight | Z60-Z275 (60-275g/m²) |
| Elongation | ≥30% |
| Surface Finish | Zero Spangle/Minimized Spangle |
| Tensile Strength | 270-500 MPa |
| Yield Strength | 140-280 MPa |
| Salt Spray Resistance | 1,000hrs (ASTM B117) |
| Coil Weight | 3-8 Tons |
Applications
- Automotive Body Panels: Door inner panels, fenders, and trunk lids requiring deep-drawing formability and corrosion resistance.
- Chassis Components: Underbody parts, brackets, and reinforcement panels exposed to road salts and moisture.
- Structural Parts: Seat frames, cross members, and wheel arches leveraging high strength (270-380 MPa) and weldability.
- HVAC Systems: Ducts and housings benefiting from zinc coating protection and formability.
Customization Options
- Zinc Coating: Adjustable coating weights (e.g., Z120 for interior parts, Z275 for corrosive environments).
- Dimensions: Custom thickness, width, and length cuts.
- Surface Treatment: Chromated, oiled, or passivation finishes for enhanced corrosion resistance.
- Spangle Type: Zero spangle (ideal for painting) or minimized spangle.
- MOQ: 5 tons (custom orders), 25 tons (standard).
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
Frequently Asked Questions
Does the coil support welding and painting?
Yes, the zero-spangle surface ensures excellent weldability and paint adhesion.
What's the payment term for Galvanized Steel Coil?
30-50% TT in advance (based on your qty), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
