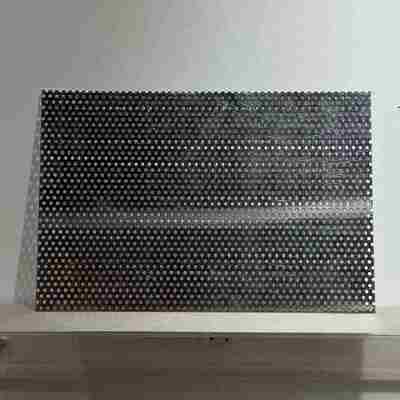

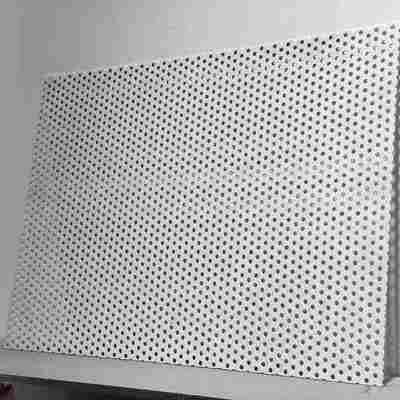

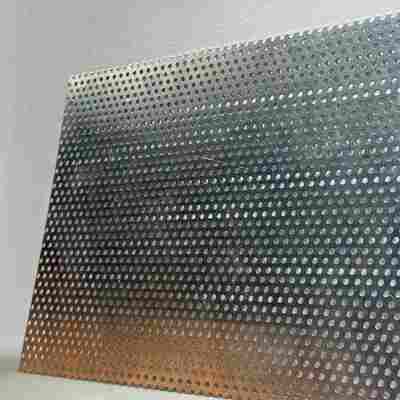

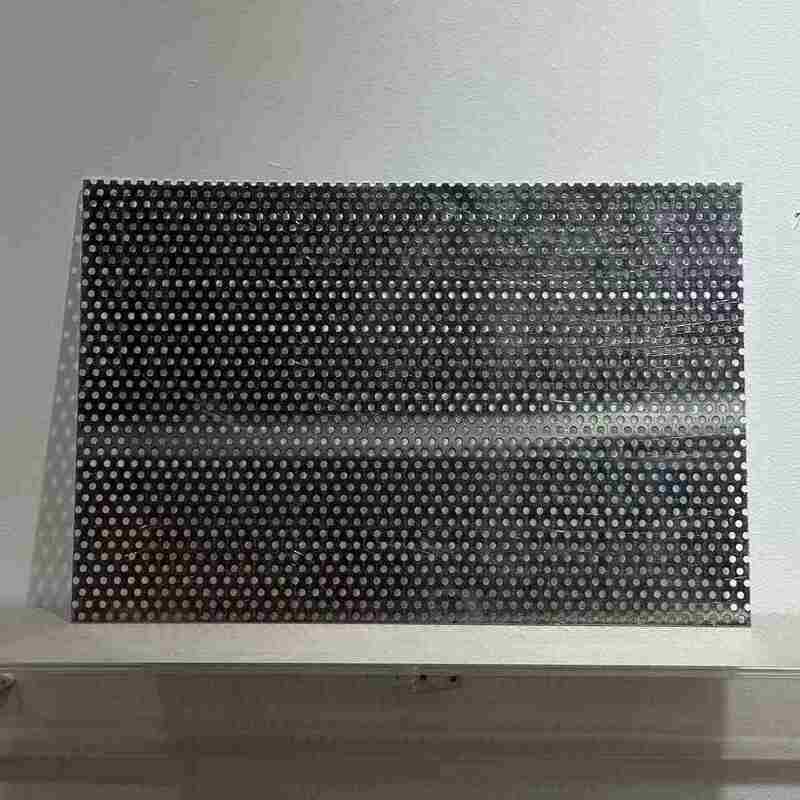

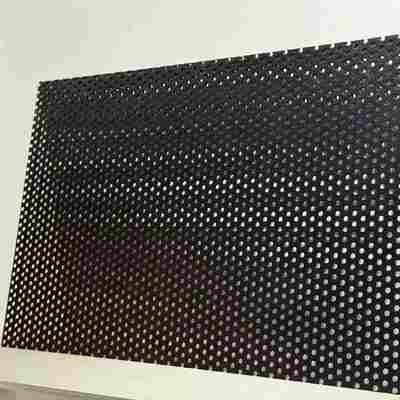

Lightweight Corrosion Resistant Aluminum Perforated Sheet Optional Color Coated
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | HUIYI |
| Certificação: | ISO 9001, ASTM B117, AAMA 2605 |
| Número do modelo: | Folha perfurada de alumínio |
| Documento: | HUIYI CATALOGUE.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 25 toneladas |
|---|---|
| Preço: | Negotiated Price, USD/MT |
| Detalhes da embalagem: | Filme impermeável PE + papel kraft + paletes fumigadas com protetores de borda |
| Tempo de entrega: | 15-45 dias |
| Termos de pagamento: | L/C,T/T,D/P |
| Habilidade da fonte: | 5.000 toneladas por mês |
|
Informação detalhada |
|||
| Nome do produto: | Folha perfurada de alumínio | Tipo de revestimento: | PVDF / Revestimento em Pó / Acabamento Moinho |
|---|---|---|---|
| Espessura do revestimento: | PVDF ≥30μm; Pó 60-80μm | Tratamento de borda de folha: | Borda Fresada / Borda Aparada |
| Proporção de área aberta: | 15% - 75% (personalizável) | Força de rendimento: | ≥125 MPa |
| Resistência à tração (Rm): | 130 - 152 MPa | Recurso principal: | Leve e alta resistência à corrosão |
Descrição de produto
| Base Material | 3003 Aluminum Alloy (Al-Mn series) |
|---|---|
| Alloy Density | Approx. 2.73 g/cm³ |
| Standard Thickness | 0.8mm (Available Range: 0.5mm - 6.0mm) |
| Standard Sheet Size | 1220mm x 3050mm (Custom sizes available upon request) |
| Hole Shape & Pattern | Round Holes, Staggered 60° Pattern |
| Hole Diameter | 0.8mm - 10mm |
| Surface Treatment | Mill Finish, Powder Coating, PVDF Coating |
| Corrosion Resistance | Compliant with ASTM B117 Salt Spray Testing standards |
· Architectural Façades & Cladding: Used as ventilated rain screens and decorative exterior skins, the panels provide solar shading while allowing natural ventilation, significantly reducing building energy loads.
· Interior Design & Ceilings: Ideal for modern ceiling systems, acoustic baffles, and room partitions. The perforations help diffuse sound and integrate seamlessly with HVAC and lighting systems, enhancing both spatial aesthetics and functional comfort.
· Ventilation & Sunscreens: Serves as durable sunshades and protective covers for HVAC units. The open area allows for efficient airflow and natural light diffusion while preventing UV degradation.
· Industrial Filtration & Guards: Employed as machinery safety guards, filtration screens, and protective grilles where high visibility, airflow, and impact resistance are required.
Triple-Shield Packaging
PE waterproof film with desiccants + kraft paper outer wrap + 15mm fumigated wooden pallets with EPE edge guards.
Global Logistics
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance
Fully compliant with IMO shipping standards. Pre-shipment inspection and moisture indicators included.
Do you provide samples?
Yes, for regular sizes sample is free, buyer need to pay freight cost.
How can I get a quotation?
You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.
How long is the delivery time?
It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
